Product Description:

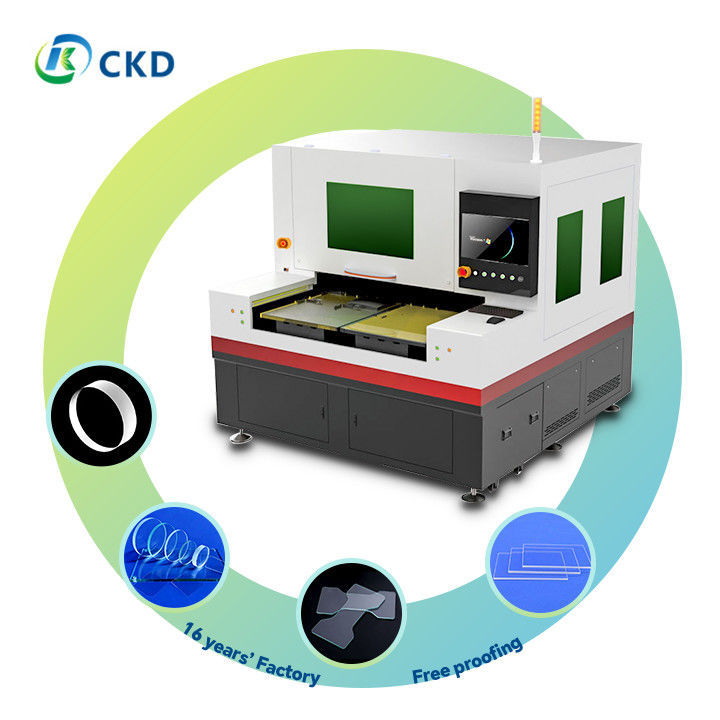

Advanced Laser Cutting Machine: Precision and Versatility
Key Features:
- High-Power Laser Source: Equipped with a cutting-edge, high-frequency pulsed laser for superior cutting performance.
- Versatile Material Handling: Capable of processing a wide range of materials including metals and non-metals.
- Multifunctional Cutting Capabilities:
- Supports continuous sheet cutting
- Precision single-point cutting
- Efficient strip cutting
- Advanced X/Y Axis Control: Utilizes high-precision DC servo motors and ultra-fine 0.1μm optical encoders for unparalleled accuracy.
- Intelligent Motion Control: Features automatic focus-following functionality and dynamic piercing control.
- High-Resolution Imaging: Incorporates a premium CCD camera system for real-time visual monitoring, pattern recognition, and mark point detection.
- Robust Power Supply: Equipped with a German-made, high-stability power source. Taiwanese brand power supply used for optical components.
- Impressive Cutting Range: Capable of processing materials up to 19mm in thickness, catering to a wide array of industrial applications.
- Precision-Engineered Components:
- Motor base and optical platform constructed with natural granite
- Designed for superior stability and vibration resistance
- Ensures maintained accuracy over time
Additional Benefits:
- Ideal for high-precision industrial applications
- User-friendly interface for easy operation
- Reduced material waste due to precise cutting
- Suitable for both small-scale and large-volume production runs
- Low maintenance requirements, ensuring long-term reliability
Features:
Advanced Laser Cutting System: Features, Advantages, and Applications
Key Features
- Precision Cutting
- Irregular shape high-speed cutting
- Contour cutting
- Small hole drilling
- Hand-held cutting capabilities
- Superior Processing
- High-quality edge finishing
- No taper effects
- Minimal material loss
- Burr-free cutting
- Eco-Friendly Operation
- No pollution
- No powder residue
- No wastewater production
Advantages
- High-Speed Processing
- Rapid cutting of complex shapes and patterns
- Superior Cut Quality
- Clean edges with no tapering
- Minimal to no burrs
- Extremely small chipping, if any
- Cost-Effective
- High yield rate
- Low consumable usage
- Energy-efficient operation
- Environmentally Friendly
- Clean process with no harmful byproducts
Compatible Materials
- Specialized Glass
- Ultra-clear glass
- Plain white glass
- High borosilicate glass
- Quartz glass
- Electronic Components
- Phone glass covers
- Car glass
- Camera glass covers
- LCD screens
- Optical Materials
- K9 glass
- Various optical filters
- Mirror cutting
- Precious Materials
- Sapphire processing for watch faces and electronic components
Applicable Industries
- Glass Manufacturing
- Optical glass
- Tempered glass
- Ultra-thin glass
- Laboratory glassware
- Medical glass equipment
- Electronics
- Mobile phone screens and covers
- Tablet displays
- Laptop screens
- Optical/ITO/Yellow/Purple semiconductor glass
- Automotive
- Car windows and windshields
- Dashboard displays
- Instrumentation panels
- Real Estate and Construction
- Architectural glass
- Decorative glass panels
- Bathroom glass fixtures
- Home Appliances
- Glass panels for ovens and refrigerators
- Lighting glass components
- Communication Media
- Mobile device screens
- Watch sapphire covers
- Camera and CCTV lenses
- New Energy Sector
- Solar panel glass
- Specialized glass for energy-efficient windows
- Aerospace and Defense
- High-precision optical components
- Specialized glass for cockpit displays
- Medical and Scientific Research
- Laboratory equipment glass
- Optical lenses for medical devices
- Microfluidic chips
This advanced laser cutting system offers a versatile solution for a wide range of industries, providing high-precision, efficient, and eco-friendly processing of various glass and optical materials. Its ability to handle complex shapes and delicate materials makes it an ideal choice for both large-scale manufacturing and specialized, high-value applications.
Technical Parameters:
Technical Parameters: Advanced Laser Cutting Systems
| Parameter |
Dual-platform Ultrashort Pulse Laser Cutting Machine |
Dual-platform Picosecond Laser Cutting Machine |
Single-platform Picosecond Laser Cutting Machine |
| Model Number |
HT-1PG-6070GD/6090GD |
HT-1PG-4050D/6070D/6090D |
HT-1PG-4050/6070/6090 |
Laser Specifications
- Laser Type: Ultrashort pulse fiber laser (specific type varies by model)
- Average Power: 50W (options for 10W, 20W, 30W, 60W, 80W available)
- Wavelength: 1064nm, with second harmonic at 532nm
- Pulse Width: <10ps (picoseconds)
- Repetition Rate: 1Hz - 1000kHz (adjustable)
- Beam Quality: M² < 1.2 (near-diffraction-limited beam)
Cutting Performance
- Positioning Accuracy: ±2μm over entire work area
- Repeatability: ±1.5μm, with ±16 arc-seconds angular accuracy
- Maximum Cutting Speed: Up to 1000mm/s
- Cutting Thickness:
- Ultra-thin glass: ≤1mm
- Standard glass: ≤19mm (varies based on material properties and cutting requirements)
- Minimum Line Width: ≤30μm (material dependent)
- Minimum Hole Diameter: ≤20μm
Work Area Dimensions
- Dual-platform Models: 600x700mm, 600x900mm, or 400x500mm per platform
- Single-platform Model: 400x500mm, 600x700mm, or 600x900mm
Power and Electrical
- Power Consumption: 150W (250W/350W standby)
- Input Voltage: AC220V ± 10%
- Frequency: 50-60Hz
Physical Specifications
- Machine Dimensions:
- Length: 1600mm - 2550mm (model dependent)
- Width: 1700mm - 2080mm
- Height: 1960mm
- Weight: 3500kg - 5000kg (varies by model)
Additional Features
- Cooling System: Built-in water cooling for thermal stability
- Control System: Advanced CNC with high-speed processing capabilities
- Software: Proprietary cutting optimization software included
- Safety Features: Class 1 laser safety enclosure, emergency stop buttons
Environmental Requirements
- Operating Temperature: 18-28°C (64-82°F)
- Humidity: 40-70% non-condensing
- Power Stability: ±5% maximum fluctuation
Optional Upgrades
- Enhanced vision system for automatic alignment
- Automated material loading/unloading system
- Custom fixture designs for specific applications
- Extended warranty and service packages available
Note: Specifications may vary slightly based on specific configurations and continuous product improvements. Please consult with our technical team for the most up-to-date information and customization options.
Applications:
The advanced laser cutting machine we offer is designed to satisfy the diverse needs of various industries. It provides precision and efficiency for a wide range of materials and applications:
1. Instrument Panel Manufacturing
- Ideal for manufacturing high-precision instrument panels, dashboards, and control interfaces
- Capable of handling thin to medium-thickness materials with exceptional accuracy
2. Specialized Glass Processing
- Ultra-thin Glass : Precisely cut delicate glass sheets for electronic devices
- White Glass : Clean and accurate processing for decorative and architectural applications
- High-Borosilicate Glass : Specialized cutting for laboratory equipment and heat-resistant products
- Quartz Glass : Precision cutting for optical components and semiconductor industry needs
3. Electronic Component Fabrication
- Tailored for cutting PCB boards, flexible circuits, and other electronic substrates
- Ensures clean edges and minimal thermal impact on sensitive electronic materials
4. Gemstone and Precious Material Processing
- Sapphire Cutting : For watch faces, smartphone camera lenses, and high-end displays
- Precision Gemstone Shaping : Creating intricate designs in precious and semi-precious stones
- LED Component Manufacturing : Cutting sapphire wafers for LED production
5. Liquid Crystal Display (LCD) Panel Fabrication
- Capable of processing various LCD components, including:
- ITO (Indium Tin Oxide) conductive films
- RGB color filters
- Polarizing films
- Ensures precise cutting without damaging delicate display materials
6. Specialized Optical Film Processing
- Accurate cutting of K9 optical glass for high-quality lenses and prisms
- Precision shaping of optical films for various industrial and scientific applications
Additional capabilities include:
- Micro-cutting of small, intricate parts for the medical and aerospace industries
- Custom shape cutting for unique product designs and prototypes
- Multi-layer material processing for composite products
Our laser cutting system's versatility makes it an invaluable tool across multiple industries, from consumer electronics to advanced scientific research, ensuring high-quality results and efficient production processes.
