One of the most notable features of the Laser Drilling Machine is its floor load capacity of over 500Kg/m², ensuring stability and accuracy during operation. Additionally, the machine can read various image file formats such as .plt, .dxf, .dwg, providing users with versatile options for designing and creating drilling patterns.
The Laser Drilling Machine is also designed with a focusing depth of 250~450um, allowing for precision drilling with minimal damage to the surrounding material. This feature is particularly useful for industries that require delicate and precise micro drilling, such as the electronics and medical industries.
Overall, the Laser Drilling Machine is a reliable and efficient tool for laser micro drilling and laser glass drilling. With its high precision and versatility, it is an excellent investment for any industry that requires micro drilling capabilities.

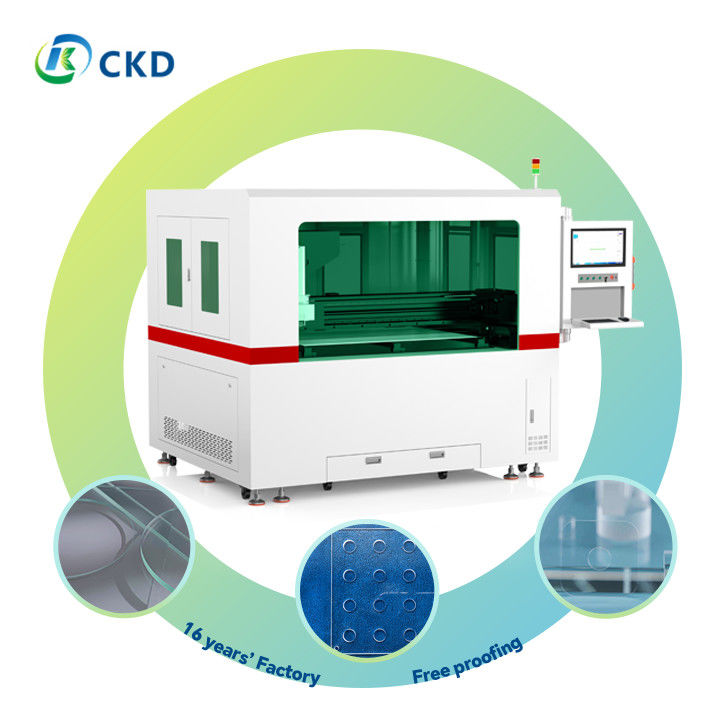

This laser drilling machine is perfect for drilling glass material. Its pulse width ranges from 6-100ns and can drill holes with a diameter of less than 100mm. With a laser power of 100W and a wavelength of 1064nm, this horizontal glass drilling machine is an automatic drilling machine laser that can produce precise holes with a focusing spot of less than 30 times.
| Technical Parameter | Value |
|---|---|
| Laser Wavelength | 1064nm |
| Cutting Speed | 0~600mm/s Adjustable |
| Pattern Generation | Includes EZcad + 2D Drawing / 2.5D Galvo Scanner |
| Focusing Spot | <30 Times |
| Equipment Weight | <1500Kg |
| Customized Positioning Accuracy | ±3μm + 5μm |
| Model | CKD-EC1390-LDM120/ CKD-EC1390-LDM180 |
| Processing Range | 600x700mm, 800x1000mm |
| Red Light Indication / Field of View | Coaxial Red Light / Field Lens |
| File Formats | Various Image File Formats Such As .plt, .dxf, .dwg |
This product is a portable glass drilling machine, also known as a yag laser drilling machine or a laser micro drilling machine.
The CKD-EC1390-LDM120 / CKD-EC1390-LDM180 laser glass drilling machine is made in China and is certified with ISO/CE/FDI standards, ensuring its high quality and reliability. The minimum order quantity for this portable glass drilling machine is 1 and the price is negotiable. The packaging details include a wooden box to ensure safe transportation. The delivery time is estimated to be between 15-45 days, depending on the location of the buyer.
The CKD-EC1390-LDM120 / CKD-EC1390-LDM180 laser drilling machine has a focusing spot of less than 30 times, which ensures high accuracy and precision. The repetition frequency of this machine ranges from 1-4000KHz. The coaxial red light and field lens provide a clear indication and view of the drilling area. Various image file formats such as .plt, .dxf, and .dwg are supported by this laser micro drilling machine.
This laser glass drilling machine is equipped with a water cooling system, ensuring that the machine doesn't heat up during operation. With a supply ability of 50 sets per month, this product is readily available for customers. The CKD-EC1390-LDM120 / CKD-EC1390-LDM180 laser drilling machine is suitable for various application occasions and scenarios such as drilling holes in glass for electronic devices, drilling microholes in aircraft parts, drilling holes in medical equipment, and other precision drilling tasks.
The payment terms for this product include L/C and T/T. If you are looking for a reliable and efficient laser drilling machine, the CKD-EC1390-LDM120 / CKD-EC1390-LDM180 laser micro drilling machine is an excellent choice.
